Product Description

Features and Advantages:

1. Wifi transmitter(option): the transmitter connects to handle section to transmit image to vision screen or mobile phone.

2.High Resolution: 5 inch monitor 1920*1080 and 10 inch 1280*800 high resolution. Allow HDMI USB and DVI output ,HDMI cable can be used to send the video signal to an external monitor, you can see Real-time image in mobile phone by app,which is convenient for teaching.

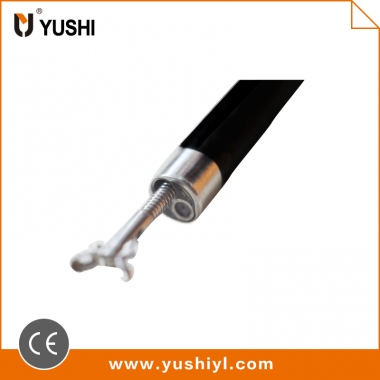

3.Multi diameter of Working channel:
Insertion tube 5.8mm with working channel: 2.6mm
Insertion tube 5.2mm with working channel: 2.2mm
Insertion tube 4.2mm with working channel: 1.2mm
Insertion tube 3.8mm and 2.8mm without working channel

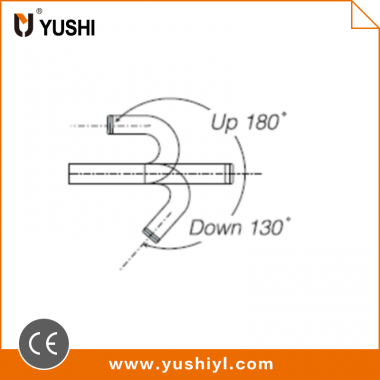

4.Angle of the bending section can be up 180° and down 130° which guide the disposable tracheal intubation through the oropharynx, throat, epiglottis, glottis, eventually reach the trachea, can improve the success rate of intubation, reduce airway injury.

5.Trolley:1.5m,available for 4 endoscopes set

1920*1080 high resolution. Allow HDMI output, HDMI cable and wifi transmitter can be used to send the video signal to an external monitor, you can see Real-time image in mobile phone by app,which is convenient for teaching.

Two types of vision screen for select: VS50(no wifi) and VS100

The vision screen can turn up 160°, down 60°, left and right 170°.Perfectly cope with difficult airway management.

There is a SD card slot provides extra SD card.

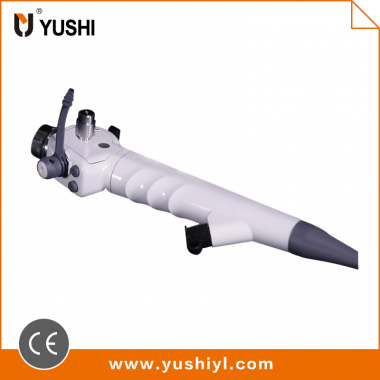

It is convenient to operate by one hand with the humanization design handle.The handle is designed from an ergonomic point of view which make it portable and comfortable.

Five stage brightness adjustment and white balance adjustment.

Angle of the bending section can be up 180° and down 130° which guide the disposable tracheal intubation through the oropharynx, throat, epiglottis, glottis, eventually reach the trachea, can improve the success rate of intubation, reduce airway injury.

Endoscope is a high-tech equipment and be very wide application in the medical field,Mainly used in anesthesia to cope with difficult airway management,basis of surgical instruments.
