Product Detail

China CE&ISO approved Low Temperature Plasma Sterilizer for sale

Purchase Qty	Unit	Fob Price
≥1	Set(s)	US $8500 ~ 17500

Payment Terms: L/C,T/T,

Get Latest Price

Contact Supplier Chat Now

Product Information

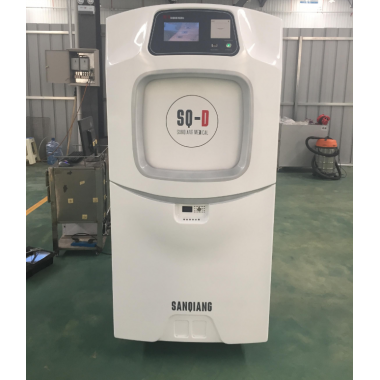

Model: SQ-D

Certification: CE

Net Weight: 300KG

Dimension: 1070*810*1780(mm)

Packaging Details: International Standard Packing

Brand Name: Sanqiang

Trademark: Sanqiang or as per your requirements

Place of Origin: China

Warranty: 1 year

Application domain: medical

Sterilization procedure: plasma

Other characteristics: touchscreen, low-temperature

Agent: 60%H2O2

Product Description

China CE&ISO approved Low Temperature Plasma Sterilizer for sale

Product DescriptionSpecifications


DESCRIPTION		RENO – S130
TOTAL CYCLE TIME		Non-lumen cycle: 28min
		Eco Cycle : 45min
		Advanced Cycle : 62min.
DIMENSIONS & WEIGHT	Dimensions (H x W x Dmm)	1,040×800×1,600
DIMENSIONS & WEIGHT	Weight	340Kg
STERILIZATION CHAMBER	Configuration	Rectangular
	Total Volume (H x W x Dmm)	135L, 750×450×400
	Usable Volume	120L
	Shelf	2 (Upper / Lower)
	Material	Stainless Steel
STERILANT	Liquid Chemical Agent	Hydrogen Peroxide
	Concentration & Usage	10ml (60%)
	Concentration & Usage	1Cycle / Cassette
CONNECTION	Electricity	220V~, AC, 50/60Hz
PROGRAM	Self-Test Mode	Yes
	Printer Outputs	Thermal Printer
	Data Storage	Memory Card
DISPLAY	Screen	8.4” TFT Touch Screen
DISPLAY	Alarm	Audible Alarm
STERILIZES LUMEN CLAIMS(CE)	Sing & Double – Channel Stainless Steel Lumen	Advanced Cycle : 1Ø × 1,000mm
	Sing & Double – Channel Teflon Flexible Lumen	Advanced Cycle : 1Ø × 12,000mm
	* Single-through Lumen	Advanced Cycle : 2Ø × 1,500mm
AIR INLET BACTERIA ETENTION FILTER	HEFA Filter	Efficiency at 0.3 micron(0.3 x 10-6)

For Effective Sterilization1. TFT LCD Touch Screen2. Removable 2 Sliding Shelves3. Ergonomic design / Single-use cassette type sterilant4. Univercial data acquisition system

Sterilization scope

Metal materials

Most metals including stainless steel, aluminum, copper, and titanium, etc

Non-metal materials

Glass, polyethylene, latex, polycarbonate, PGLA, silicon, Teflon, neoprene, nylon, polypropylene, polystyrene, and polystyrene, etc

Instruments

Soft/hard endoscope, endoscopic equipments, laser head, esophageal dilator, cryotherapy probe, power equipments and battery, razor head, ultrasonic probe, optical fiber and pacing wire, fiber-optic cable, electronic equipment and wire, metal instruments, and glass wares

Not applicable to sterilization of sterilizer
Stainless steel tubular device hygroscopic materials with inner diameter smaller than 1mm and length larger than 500mm (essential instrument, cellulose, cotton fabrics, and gauze, etc), disposable instruments (disposable waterproof fabric and disposable gowns, etc)
Liquid or powder
Not completely dried articles, cavity with one blocked end, general implants

Charateristics of an Ideal Sterilization methode Consists of
