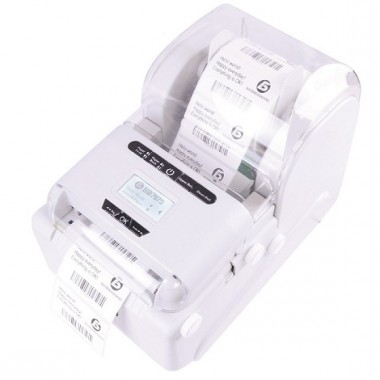

Product Description

The RFID technology which is based on the Internet of Things can be widely used in various fields such as anti- counterfeit safety, traffic foods, books, animals, agriculture, power management, electronic payment, environmental monitory, smart home, social services, public hygiene and green ecology.

Applications: Public Transportation, Access Management, Electronic Toll Collection, Car Parking, School and Campus Cards, Employee Cards, Internet Cafes, Loyalty, Event Ticketing, Voucher and Coupons, Product Authentication, Electronic Shelf Labels

FEATURES

◆Print Data and Write Data Simultaneously.

◆Two Rolls Design for Printing Material, Easy to Switch Printing Material and Printing Channel.

◆Printer Communication Port is with USB, Ethernet, and WIFI (Optional).

◆LCD Display can Show Real-time Printing Status and Quantities.

◆Equipped with Multiple Languages, and Software Supports the Printing of Different Language Texts.

◆Direct Thermal Printing.

RFID TECHNICAL PARAMETERS

RF Protocols

ISO/IEC 14443 Type A, NFC Forum TAG Type 1，2，3 and 4

Supported Chips

Mifare 1K S50, Mifare 4K S70, Mifare Ultralight EV1(MF0UL11), Mifare Ultralight EV1(MF0UL21), NTAG213, NTAG215, NTAG216, FM11RF08

Work Frequency

13.56MHz

Work Status Indicator

Displayed in the screen

Antenna

Built-in

PRINTER SPECIFICATIONS

Resolution

300 dpi/12 dots per mm

Print Width

Maximum: 4.25”/108mm

Minimum: 0.39”/10mm

Print Speed

Selectable

Standard Speed: 2.5”/60mm per second

Maximum Speed: 5 ips/120mm per second

Printing mode

Thermal printing

Two Rolls

Upper Roll/Down Roll, selectable

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃ to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Width: 225mm

Height: 306mm

Depth: 345mm

Weight (N.W): 3.11kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface (RJ45)

Wireless 802.11 b/g /n(Optional)

Font and Graphic

Support user-defined fonts and graphics-including customized logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Power Cord

BAOBI Label Holder WH01 (Optional)
