TF Hydraulic and Manual Surgical Gynecology Operation Table

Purchase Qty Unit Fob Price
≥1 Piece(s) Negotiable

Payment Terms: L/C,T/T,D/P,PayPal,,Small-amount payment,Money Gram,EXW,FCA,D/A

Get Latest Price
Contact Supplier Chat Now

Product Information

Model: TF-01

Certification: CE

Net Weight: G/N.W:260/210KG

Dimension: 1360*860*880mm

Packaging Details: Wooden Case

Brand Name: Health

Trademark: Health

Place of Origin: China

Warranty: 1 year

Certificates: ISO 13485 / ISO 9001

Product Description

Descriptions

TF Hydraulic gynecology operation table, the body, column and base are all made of stainless steel, with high mechanical strength, corrosion resistance, and is conducive to cleaning and disinfection.

This hydraulic gynecology operation table comes standard with shoulder rest, shoulder strap, handle, leg rest and pedals, dirt basin with strainer, and optional gynecological examination light.

The height of the hydraulic gynecology operation table can be adjusted by pedals, and the tilt of the bed can be adjusted by shaking the handle.

When the brake is stepped on, the fixed base at the bottom of the bed is lowered, which increases the contact area with the ground and ensures the stability of the bed.

It is widely used for gynecology, obstetrics, urology, and anorectal surgery.


Features

Stainless Steel Material

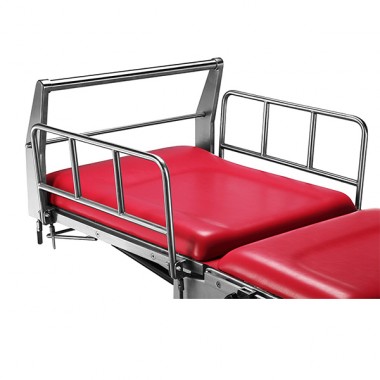

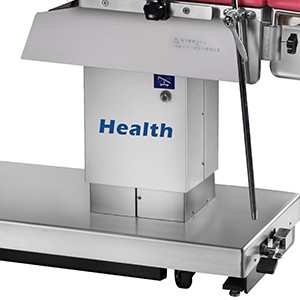

The main body, side rails, lifting column and base of the hydraulic gynecology operating table are made of high-quality 304 stainless steel, with high mechanical strength, corrosion resistance and easy cleaning.

Wide Table Surface

The width of the hydraulic gynecology operating table surface can reach 600mm, which is very friendly to people of a specific body type and improves comfort.

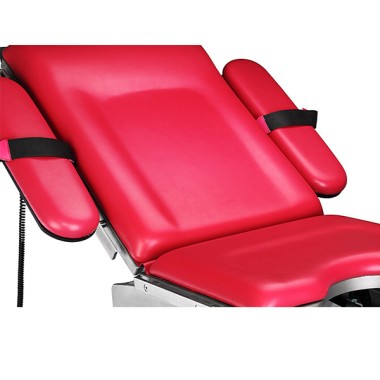

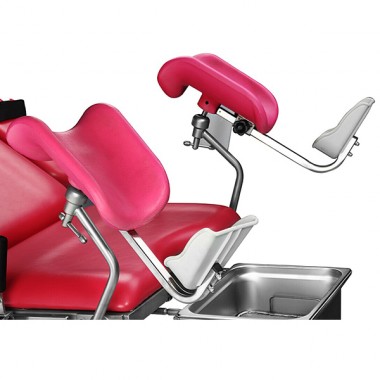

Versatile Accessories

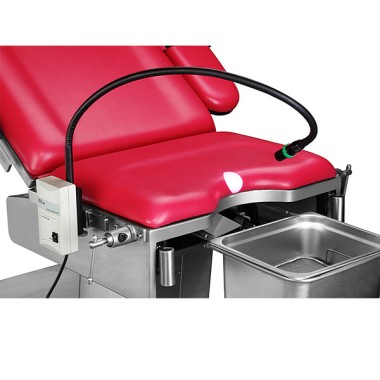

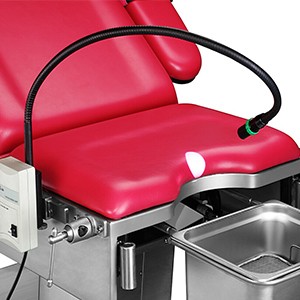

In addition to the standard shoulder rest, shoulder straps, handles, leg rests, leg pedals, waste basin, gynecological examination light is optional available too.

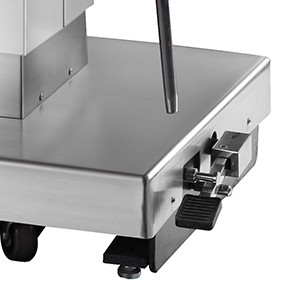

Unique Fixed Foot

Unique operating table fixed foot increases the contact area with the ground and ensures the stability of the hydraulic gynecology.


Parameters



Model

Item

TF Hydraulic Gynecology Operation Table



Length and Width

1800mm * 600mm

Elevation( Up and Down)

900mm / 680mm

Trendelenburg/Reverse Trendelenburg

8°/ 20°

Back Plate (Up and Down)

 70°/ 11°

Voltage

220V/110V

Frequency

50Hz / 60Hz

Mattress

Seamless Mattress

Main Material

304 Stainless Steel

Maximum Load Capacity

145 KG

Warranty

1 Year



Standard Accessories

No.

Name

Quantities

1

Arm Support

1 pair

2

Handle

1 pair

3

Leg Plate

1 piece

4

Mattress

1 set

5

Waste Basin

1 piece

6

Fixing Clamp

1 Pair

7

Knee Crutch

1 Pair

8

Pedal

1 Pair
