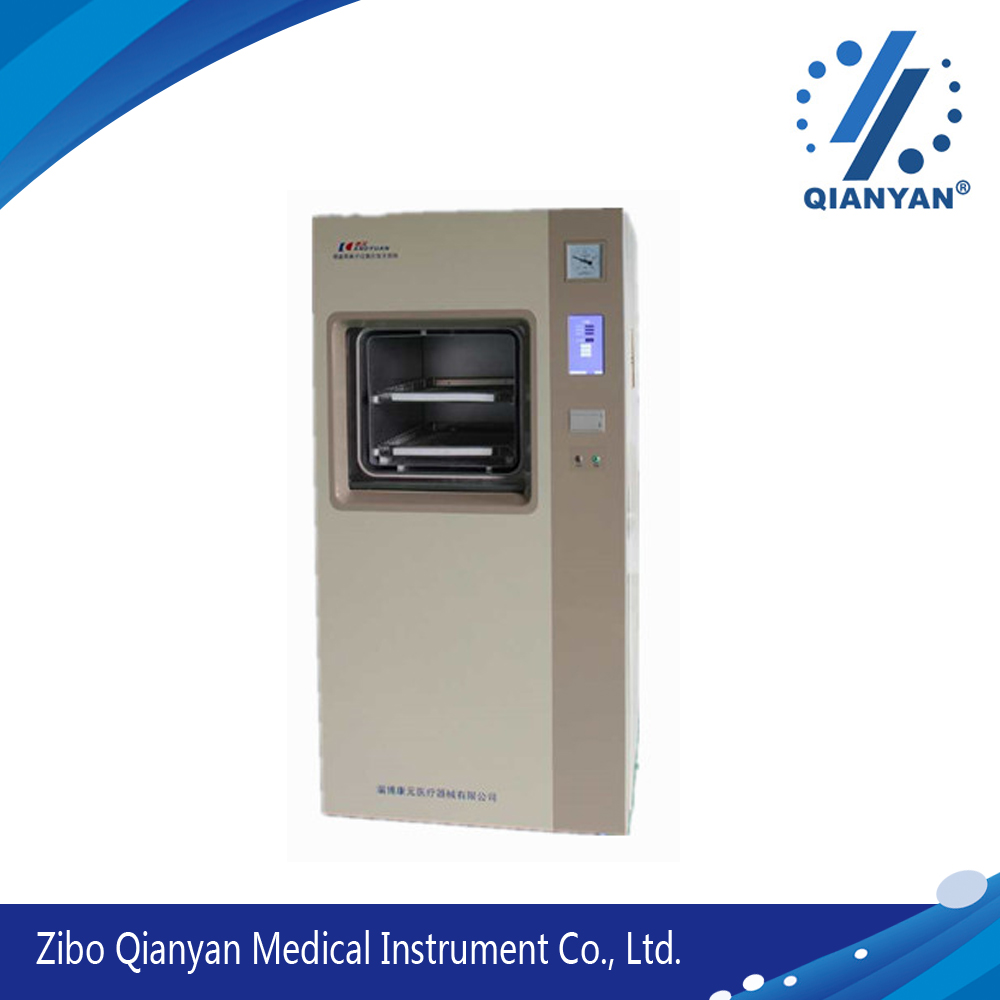

Hydrogen Peroxide Low Temperature Gas Plasma Sterilizers

Purchase Qty Unit Fob Price
≥1 Set(s) US $18900 ~ 19900

Payment Terms: L/C,T/T

Get Latest Price
Contact Supplier Chat Now

Product Information

Model: KYPS-135

Certification: CE

Net Weight: 300KG

Dimension: 860*1000*1750mm

Packaging Details: Wooden Case

Brand Name: Kangyuan

Trademark: Kangyuan

Place of Origin: China

Warranty: 1 year

Product Description

Introduction
Using hydrogen peroxide (H2O2) as the sterilization agent of the equipment, vaporized H2O2 forms plasma hydrogen peroxide in electromagnetic field under low temperature environment, and in combination with H2O2 gas to conduct low temperature dry sterilization against items inside the sterilization chambers while dissociate hydrogen peroxide residues efficiently.
It can be widely used in Operating Room, Central Sterile Service Department and other therapeutic departments.
Suitable Typical Material & Instruments
Material - Aluminum, copper, acetal resins(polyacetal), copolymer, glass, ethylene-vinyl acetate, liquid crystalline copolymer, polycarbonate, titanium, nylon, polycarbamate, PVC, stainless steel, PEEK, PE - PPSU, Teflon, PEI, PS, PP, PMMA, silicone elastomer.
Instruments - Surgery implants, patients end connection cables, optical & glass lens, power equipment & batteries, rigid endoscope, catheter and surgical instruments.
Features

Touch screen, good human-computer interfaceReal time display of chamber pressure, vacuum value, temperature, time etc. Automatic program control for whole process, dynamic display of sterilization procedureComplete alarm system of temperature, pressure, door on/off etc.Two levels password protection system for security use of the equipmentLarge memory capacity to keep original data for referenceMicro printer for real time printing of current operating batches, two kinds of data recordingMain components like vacuum pump, electromagnetic valve, sensors, PLC importedSuitable for about 95% instruments, esp. heat sensitive electronic instruments.

Technological Parameters


Model

KYPS-135

KYPS-80

Volume (L)

135

80

Inner Chamber Size(mm)

W400*L450*H750

Ø380*700

Outer Dimension(W*L*H, mm)

860*1,000*1,750

700*900*1,620

Weight(kg)

300

200

Mains Input

380V/220V 50HZ

380V/220V 50HZ
