Product Description

Technical Parameter

Breathing Mode: IPPV; A/C; Manual

Operating Pressure: 0.35--0.40 MPa

Minute Volume of Ventilation: 2--24 L/min

Respiratory Rate: 10--60 times/min (Adjustable in succession)

Five Indication: 10, 15, 20, 30, 40, 50, 60 times/min

Tidal Volume: 200--1000ml / time (Adjustable in succession)

Five Indication: 200, 400, 600, 800, 1000ml

I /E Ratio: 1: 2

Oxygen Concentration: Below 60%

Inspiratory Trigger: Below -1.5 Kpa

Low Pressure Alarm: Below 0.25 MPa

High Pressure Pause: 0.9--1.1 MPa

Reverse Flow Pressure of Airway: Below 6 KPa

Noise of Main Device: 65dB

Supply Flow of Gas Cylinder: 60 L/min

Continuous Working Time of Cylinder: Around 90min

Oxygen Storage Pressure for Cylinder: 14.7 MPa

Weight of the main unit:0.8kg

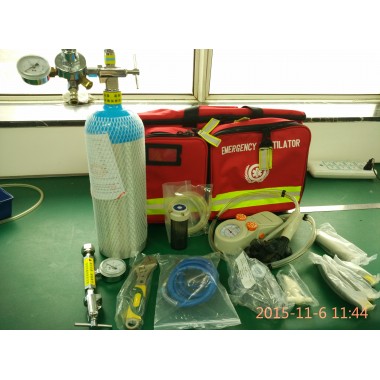

J-III C Type Mini-emergency ventilator is totally pneumatically powered with the features as: Light weight, portable, safe, high performance, and very simple to use.

It is mainly designed for the demands of first-aid treatment, transportation and various kinds of control ventilation without power source and regular gas source. For instance, ambulance, first-aid center, patients' transportation after operation, CT-locating for critical patient in the situation of control ventilation, and patient rescuing in various kinds of sudden public health affairs.

Because it is gas powered gas controlled ventilator,no need battery or power to drive,so it is very safe to use it in the mining industry.

The Respiratory Rate and Tidal Volume can be independently regulated at random to meet various patients' requirements.

The airway pressure is showed directly and reduced automatically.
