CEmarket/Lab Clinical Equipment Automatic Digital Feces Analyzer/stool analyzer
CEmarket/Lab Clinical Equipment Automatic Digital Feces Analyzer/stool analyzer
| Purchase Qty | Unit | Fob Price |
|---|---|---|
| 1-9 | Set(s) | US $50000 |
| 10 | Set(s) | US $30000 |
Payment Terms: T/T,PayPal,Others
Get Latest PriceModel: FA160
Certification: CE
Net Weight: 87kg
Dimension: 986mm*600mm*700mm
Packaging Details:
Brand Name: Orienter
Trademark:
Place of Origin:
Warranty: 1 year

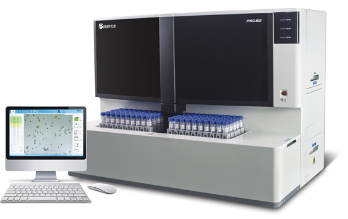

FA160 Fully Automatic Digital Feces Analyzer is the equipment for batch processing and analysis of stool samples, which vastly enhance the doctors's work effeciency, avoid high rate of miss and false test, and the hospital laboratory bio safety can also be fully ensured, as well as the test result can be digitalized, stored and transferred in the hospital's PC&LIS/HIS system.
※ Before analyzing
Sample collection tube full sealed after sampling.
※ Analyzing
Instrument pipeline full sealed in testing.
※ After analyzing
Waste sample, waste kit, waste fluid, waste gas sealed in recycle process.

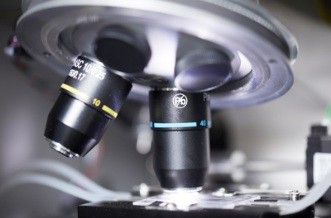

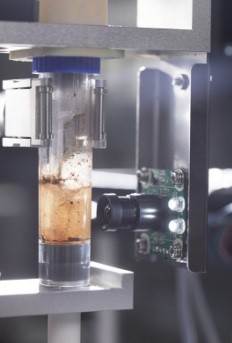

※ Optimization of optical system,custom CMOS automatic digital biological microscope.
※ Automatic focus and focal length memorizing and automatic obtain high-resolution images.
※ Resolution up to 1600*1200,image features easy to be identified.
※ Sample colors and characters photographed clearly and automatic recognition.
※ Test results of reagent kit photographed clearly and automatic assist interpretation.
※ 8 visible components of microscope test real-time screened automatically(positive cue and negative exclusion),RBC,WBC, phagocytes, pus cells, fungal spores (mycete), Charcot-Leyden crystal, fat globules, parasite eggs.
※ Analysis without staff on duty.
※ Highly intelligent system.
※ Automatic control and alarm.
※The needle dose not contact the sample when add liquid and gas, no residue inside or outside the needle.
※Sampling suction needle up-through positioning, avoiding suction with residue filtered.
※Colum isolation "sandwich" suctioning, ensure integrity of sample and no residue.
※Sampling needle spring-flushing,avoid residue inside or outside the needle.
※Flusing fluid adapted fluid system, avoid fluid residue in-pipe.
※High pressure pulse counting cell cleaning, clean thoroghly.
※Daily concentrated cleaning fluid, removing stubborn stains.
※Counting cell path is no dead corner with streamlined design, avoid residual liquid in the cell
※Reagent kit dropping needle non-contact sample, then high pressure pulse cleaning, avoiding residue in needle-head.

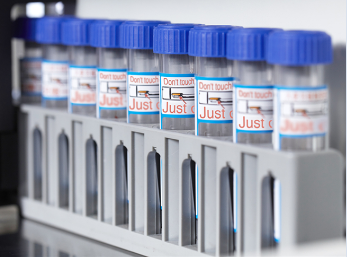

※ Sample collection tubes supporting instrument
※ Flushing fluid supporting fluid system

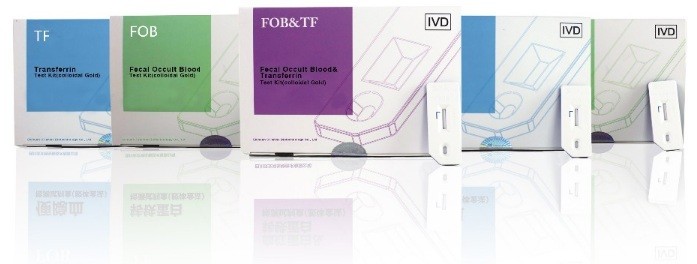

※ Self-produced reagent kits supporting instrument
1) FOB
2) TF
3) FOB&TF
4) RV
5) ADV
6) RV&ADV
7) H.P
8) Fecal Calprotectin
| Items | Major Parameters |
| sample tube introduction mode | sampling rack cycle track pipelining, sample can be detected upon arrival |
| test speed | ≥60 samples/ hour; ≥120 tests/ hour |
| sample collection tube | fully sealed patent design, no leakege |
| sample quantity | one flat spoon (about 0.25ml) |
| blending method | pneumatic blending, original setting 200 times, can be adjusted |
| reagent kit box | 50 pcs/box(Built-in two boxes) |
| reaction time of reagent kit | 4 min |
| pipeline and counting cell cleaning | high pressure pulse self-cleaning, avoid cross contamination |
| low power lens detection | preset detection of 12 views, shooting 3 pictures per view |
| high power lens detection | preset detection of 18 views, shooting 5 pictures per view |
| operating software | connect to LIS system in local or network mode |
| power supply | 220V±22V 50Hz±1Hz |
| power | 120W±12W |
| dimension | 986mm*600mm*700mm |
| net weight | 87KG |
supporting consumables and reagents | sample collection tube/ sample diluent/flushing fluid/concentrated cleaning/ reagent kits such as FOB, TF, FOB&TF,HP,RV,RV&ADV |
