Product Description

ETV-S Infusion Warmer is a ‘dry heater’, which does not directly contact the heated liquid in the working process. It transfers heat from the heat exchanger through the infusion tube to the liquid
in the pipe to achieve the purpose of continuous heating to the flowing liquid. The operator can adjust the setting temperature in the range of 35℃~42℃ according to the actual needs,
and the heater can automatically work to the preset temperature with the built-in intelligent chip and maintain the constant temperature state after reaching the target temperature.

Features
1. Compact size, better appearance
2. More accurate temperature control
3. Easy to use and operate without training
4. 35℃~42℃ temperature range adjustable, more practical

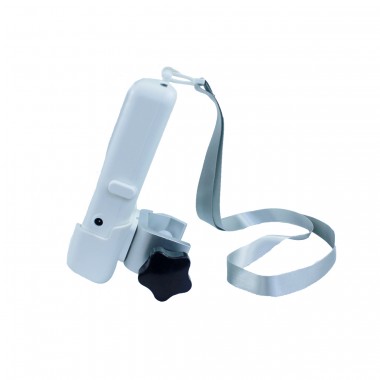

5. Two attaching methods on I.V. stand with lanyard and bracket

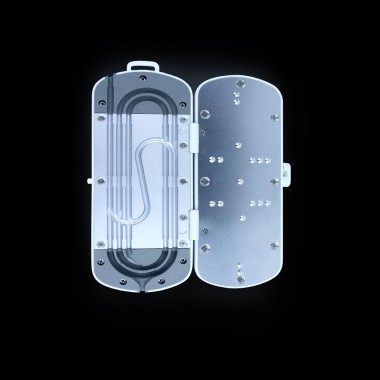

6. Three lengths (25CM, 31CM, 52CM) of heating groove design to make infusion heating more flexible
7. Over-temperature protection, five alarms including high and low temperature alarm, safer and more reliable

Specification
Device Dimension        180mm×70mm×35mm
Weight                          ≈0.2KG (without knob); 0.4kg (with knob)
Display Type                 LED
Applicable IV set           Exclusive IV Set or standard single PVC IV Set (20 and 60 d/mL, with outer diameter 3.4 ~ 4.5mm)
Temperature Range      35℃~42℃(95~107.6F), 0.1℃ increasement
Optional Unit                 (℃) and (℉)
Temperature Accuracy  ±1℃ or±1.8℉
Warning up time            ≤2min
Overheat Protection      48℃
Alarm                             Overheat, low temperature, system error, door open, heating reminder

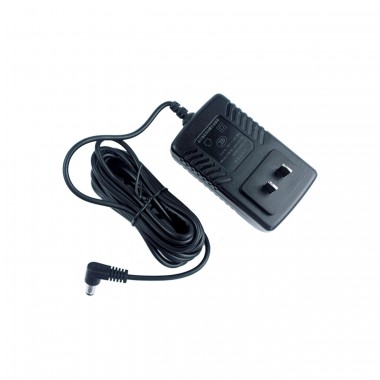

Input Voltage                 100-240V
Frequency                     50Hz/60Hz
Power                            85VA
