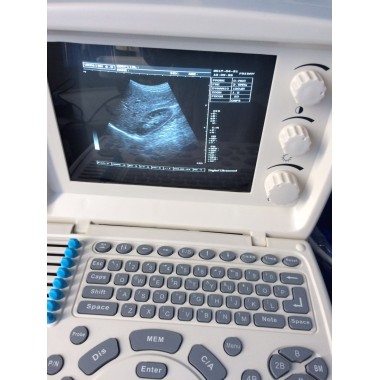

Canyearn A40 Basic Portable Ultrasonic Diagnostic System

Purchase Qty	Unit	Fob Price
≥5	Piece(s)	US $670 ~ 720

Payment Terms: L/C,T/T,PayPal,

Model: A40

Certification: CE

Net Weight: 12kg

Dimension: 500*400*450mm

Packaging Details: Box Package

Brand Name: Canyearn

Trademark:

Place of Origin: China

Warranty: 1 year

General Specification

1. Main Features

Operationg Syetem	No
Monitor	10.4 inch CRT monitor
Scanning Mode	B, 2B, 4B, B/M
Keyboard	Back-lit Silicone Keyboard (option)
Cine Loop	Up to 256 frames
Gain	0-100dB
TGC	8 segment
Scanning Depth	Up to 240mm
Dynamic Range	0-100dB
Pseudo-color	8 colors
Body Marking	30
Focus	4
Magnification	1.0, 1.2, 1.5, 2.0
Probe Connector	2
Language	Chinese/English
Matching Printer	Laser/Vedio/Inkjet/Thermal printer
Peripheral Port	USB, VGA, DICOM3.0, RS232, VIDEO OUT
Measurement & Calculation	Distance, C/A, HR and PW(obstetrics:BPD, CRL, OFD, TTD, FL, HC, AC) measurement
Image Processing	Dynamic Range, DSC, The line average turnover, Contrast, Edge Enhancement, Gray-scale Transformation&Adjustment, Brightness, Gamma Correction

2. Applications
Abdominal
Gynecology

Obstetric(BPD, CRL, OFD, TTD, FL, HC, AC)
Cardiology
Urology

3. Standard Configuration
Main system unit, 3.5MHz Convex probe, User manual and disc

4. Optional Items
Biopsy Bracket, Ultrasonic Stands, USB Flash Disk

5. Probes Selection
3.5 MHz Convex Probe (3.5-14MHz variable frequency )

7.5 MHz Linear Probe (3.5-14MHz variable frequency )

7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency)

7.5 MHz Rectal Probe(80 elements)

6. Advanced Technologies
User-friendly Interface
Dual Connector Support Various Probes
Back-lit Keyboard

Packaging & Delivery

Packaging Details: Box Package
Net Weight: 12kg
Gross Weight: 18kg

Package Size: 500*400*450mm

Delivery Time: 5-10 working days

Warranty

Two years for main unit (One year warranty for probes)

Please let us know your specific request. We would like to recommend you the most suitable model based on your information.
