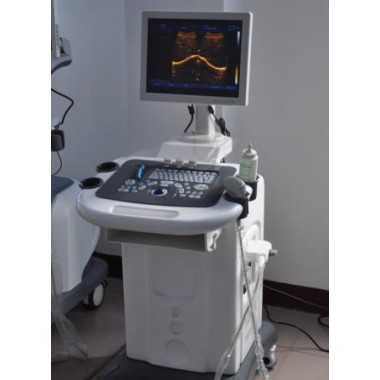

Canyearn A75 Full Digital Trolley Ultrasonic Diagnostic System Black and White Ultrasound Scanner
Canyearn A75 Full Digital Trolley Ultrasonic Diagnostic System Black and White Ultrasound Scanner
| Purchase Qty | Unit | Fob Price |
|---|---|---|
| ≥1 | Piece(s) | US $2700 ~ 3200 |
Payment Terms: L/C,T/T,PayPal,
Get Latest PriceModel: A75
Certification: CE
Net Weight: 79kg
Dimension: 700*790*930mm
Packaging Details: Box Package
Brand Name: Canyearn
Trademark:
Place of Origin: China
Warranty: 1 year
General Specification
1. Main Features
Operationg Syetem | Window 7 |
Monitor | 15 inch LED high-resolution monitor |
Scanning Mode | B, 2B, 4B, B/M, 3D image reconstruction |
Keyboard | Back-lit Silicone Keyboard (option) |
Cine Loop | Up to 1024 frames |
Gain | 10-128dB |
TGC | 8 segment |
Scanning Depth | Up to 240mm |
Dynamic Range | 30-120dB |
Pseudo-color | 40, or customized |
Body Marking | 140 |
Focus | 4 |
Magnification | 0.8-6.0 |
Probe Connector | 3 |
Language | Chinese/English/Spanish |
Matching Printer | Laser/Vedio/Inkjet/Thermal printer |
Peripheral Port | USB, VGA, DICOM3.0, RS232 |
Measurement & Calculation | B-mode: Distance, Perimeter, Area, Volume, Angle, Histogram, Cross Section, Hip Joint Angle M-mode: Heart Rate, Time, Gradient |
Image Processing Technologies | THI, Pre-process, Post-process, Dynamic Range, Contrast, Frame Correlation, Average Line, Edge Enhancement, Black-white Change over, Gray-scale Transformation&Adjustment, Brightness, Gamma Correction |
Diagnostic System Technology | l Digital Beam Forming l Intelligent Depth Gain Control l Real-time Dynamic Receiving Filtering l Ultra Wide-band Frequency Conversion Technology l Digital Frequency Scanning l Embedded High Speed Processor l Tissue Harmonic Imaging l Real-time Dynamic Aperture l Real-time Dynamic Receiving Focus |
2. Applications
Abdominal(Liver, Gallbladder, Spleen, Kidney, Pancreas)
Gynecology(Uterus, Cervix Uterus, Endometrium, Ovary, Ovarian Follicle, Hydatoncus, Enclosed Mass)
Obstetric(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA, ULNA, HC, TAD, APTD, FTA, AFI, Analytic report of fetus and the growth curve)
Cardiology(LV, LV Function, Aorta, Mitral, Valve)
Urology(Left Renal Volume, Right Renal Volume, RUV, Prostate kidney)
Small Parts(Ophthalmology, Thyroid, Jaw and Face)
3. Standard Configuration
Main system unit, 3.5MHz Convex probe, Permanent image storage unit, Specialist report(containing ultrasonic software package), User manual and disc
4. Optional Items
Biopsy Bracket, USB disk
5. Probes Selection
3.5 MHz Convex Probe (3.5-14MHz variable frequency )
7.5 MHz Linear Probe (3.5-14MHz variable frequency )
7.5 MHz Transvaginal Probe (3-10MHz variable frequency)
5.0 MHz Micro-Convex Probe (2-6MHz variable frequency)
7.5 MHz Rectal Probe(80 elements)
6. Advanced Technologies
PC platform
Full Digital Ultrasonic Kernel Engine
One Touch Optimizer
Tissue Harmonic Imaging

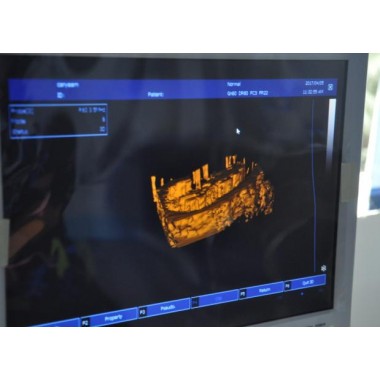

3D Imaging Reconstruction
DICOM 3.0
Packaging & Delivery
Packaging Details: Wooden Box Package
Net Weight: 70kg
Gross Weight: 79kg
Package Size: 700*790*930mm
Delivery Time: 5-10 working days
Warranty
Two years for main unit (One year warranty for probes)
Please let us know your specific request. We would like to recommend you the most suitable model based on your information.
