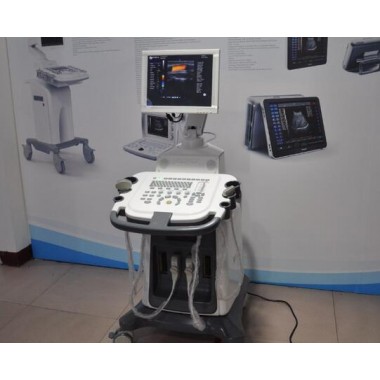

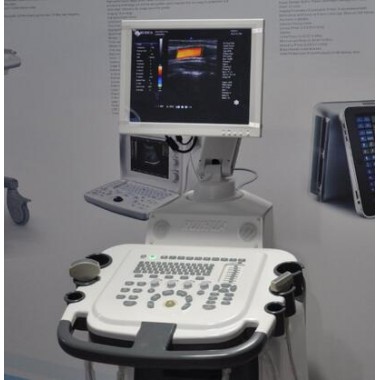

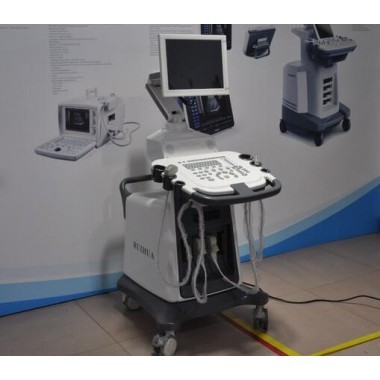

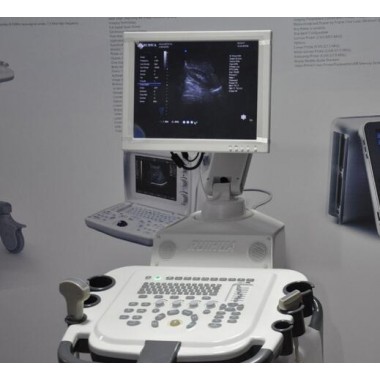

Canyearn C75 Full Digital Trolley Ultrasonic Diagnostic System Color Doppler Ultrasound Scanner
Canyearn C75 Full Digital Trolley Ultrasonic Diagnostic System Color Doppler Ultrasound Scanner
| Purchase Qty | Unit | Fob Price |
|---|---|---|
| ≥1 | Piece(s) | US $6500 ~ 7200 |
Payment Terms: L/C,T/T,PayPal,
Get Latest PriceModel: C75
Certification: CE
Net Weight: 70kg
Dimension: 700*790*930mm
Packaging Details: Box Package
Brand Name: Canyearn
Trademark:
Place of Origin: China
Warranty: 1 year
General Specification
1. Main Features
Operationg Syetem | PC Windows platform |
Monitor | 15 inch LED high-resolution monitor with rotatable arm |
Scanning Mode | B, 2B, B/M, 3D/4D |
Dynamic Range | 0-150dB |
Cine Loop | Up to 1024 frames |
Gain | 0-100dB |
TGC | 8 segment |
Scanning Depth | Up to 300mm |
Magnification | ×2.0 - ×10 |
Body Marking | 63 |
Probe Connector | 4 |
Language | Chinese/English |
Matching Printer | Laser/Vedio/Inkjet/Thermal printer |
Peripheral Port | USB, LAN, S-VIDEO, RS232 |

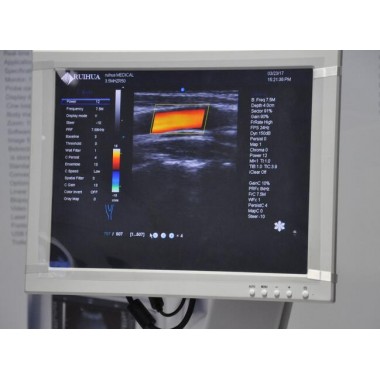

Blood Flow Image | CW, CFM, PW |
Normal Measurement | Distance, Area, Angle, Volume, Trace, Diam red(diameter stenosis), Area red(area stenosis), Cross curve, Parallel lines M General: ET, HR, Vel, Dis D General: ET, HR, Vel, ACC, Common, Trace |
Professional Measurement | Abdominal, Cardiology, Urology, Vascular, Early Obstetric, Later Obstetric, General, MSK, Pelvis Small organs(right/left thyroid) |
Combination of Digital Ultrasonic Technology | l The multi-core intel processor l The wideband digital beam forming l The multi beam parallel processing l Trapezoid Imaging l Accurate blood flow imaging l Intelligence speckle suppression l Wide view imaging l Intelligence screen capture l One touch optimization |
2. Standard Configuration
Main system unit, 3.5MHz Convex probe, 7.5 MHz Linear Probe, Image storage unit, Specialist report, Image processing optimization, User manual and disc
3. Optional Items
3D+4D, Biopsy Bracket, USB disk
4. Probes Selection
3.5 MHz Convex Probe (3.5-14MHz variable frequency )
7.5 MHz Linear Probe (3.5-14MHz variable frequency )
7.5 MHz Transvaginal Probe (3-10MHz variable frequency)
5.0 MHz Micro-Convex Probe (2-6MHz variable frequency)
7.5 MHz Rectal Probe(80 elements)
3D/4D Probe
Cardiac Probe
6. Advanced Technologies
PC platform
One Touch Optimizer
Tissue Harmonic Imaging
3D/4D Imaging Reconstruction
DICOM 3.0
Packaging & Delivery
Packaging Details: Wooden Box Package
Net Weight: 70kg
Gross Weight: 79kg
Package Size: 700*790*930mm
Delivery Time: 5-10 working days
Warranty
Two years for main unit (One year warranty for probes)
Please let us know your specific request. We would like to recommend you the most suitable model based on your information.
