Product Description

VONROLL CDM ESD 68940 /68950/68960/68630/68610

Germany easora synthetic stone CDM RAL 5001 (blue)

Product material:

It is an insulating composite made of glass fiber and high performance epoxy resin.

Application scope:

In the field of protective material for electronic manufacturing welding, the synthetic stone plate material has the best choice of machining workpieces that are easy to be machined, and the strength is high, and the thin plates keep bending strength during the hot and warm process.

For electronics manufacturing, reflow soldering has wave soldering, providing a durable, high temperature and anti static PCB plate carrier.

Characteristic：

1, the normal working temperature is 300 degrees, and the operation temperature can reach 360 degrees.

2. The dimensional stability is good and it is not easy to deform

3. Good evenness

4, certified antistatic material, the ESD index is 10 to 5 to 9 times.

5. Long service life. More than 20 thousand times

6, high temperature resistance, antistatic and chemical corrosion resistance.

Thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm

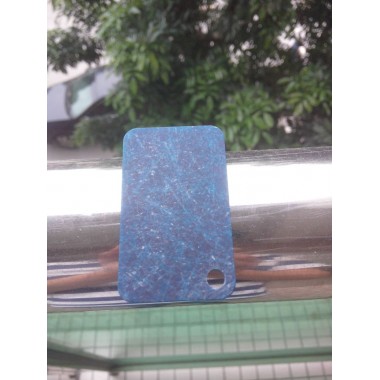

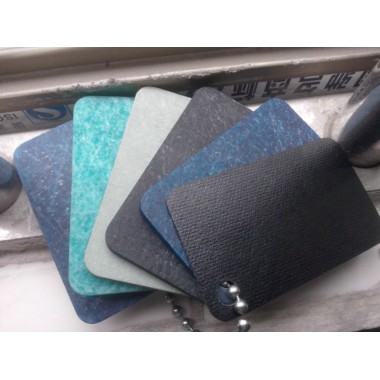

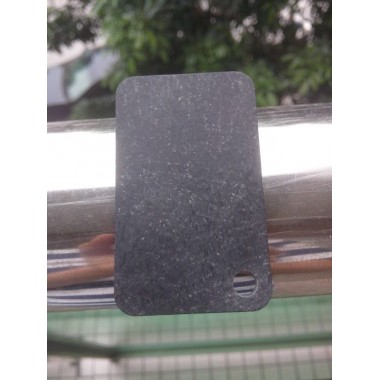

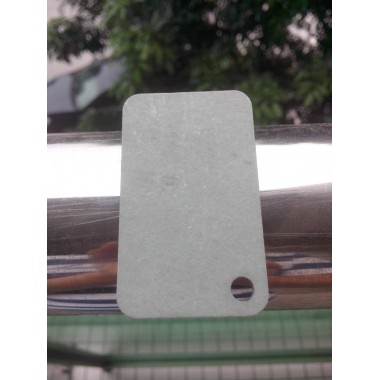

Color: Blue (non antistatic), black (antistatic), gray (antistatic + photosensitive).

Density: 1.9 g/cm3

Bending strength: 400 Mpa (23 C), 200Mpa (200 C)

Water absorbability (%) <0.1

Thermal conductivity (W/m K) 0.3

Centigrade temperature: 260 C

Temperature resistance: 360 C (10-20 seconds)

Thickness tolerance mm + 0.10mm + 0.10mm

Flat tolerance mm + 0.10mm + 0.10mm

The main specifications of synthetic stone:

Product size:

1335MM X 2350mm

Bending modulus of elasticity is 20000 Mpa (23 degree C), 12000Mpa (200 degree C).

Linear expansion coefficient: 10/ K

Surface resistivity: 105 - 109 OMEGA / square

Origin: Germany
