Product Description

EG-43 grey insulating varnish

Product description

It is a high temperature, 180 degree gray enamel, fast and natural drying.

It has excellent heat resistance and chemical resistance, tough and flexible paint film.

It has the following excellent performance:

-UL authentication (file number OBOR2.E317427 and OBJS2.E317429)

- the air is naturally drying fast.

- temperature resistant H level -180 degree

- excellent chemical resistance.

- oil resistance and moisture resistance.

- hard, smooth, wearable paint film.

- excellent adhesion.

Typical applications:

Reactors, transformers, rotors, stators, coils, printed circuit boards, PCB boards, resistors, busbars, hardware, etc.

Physical property：

Color: grey

Viscosity: 120-150 CPS

Diluent: T-200

Film thickness: 1-3 mil

Table dry time (copper test): 60 s

Arc resistance (ASTM D-495) thickness > 60 micron: >200

Electrical performance:

Dielectric strength (25 m dry film) ASTM D-115:2000V/ mill.

CTI (lEC 6D112):600m

Application Guide:

The product is uniform and fast drying, and the glossy surface has superior wear resistance and excellent adhesion.

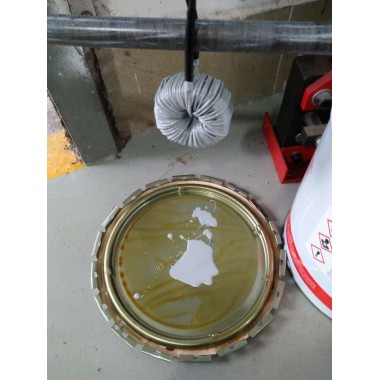

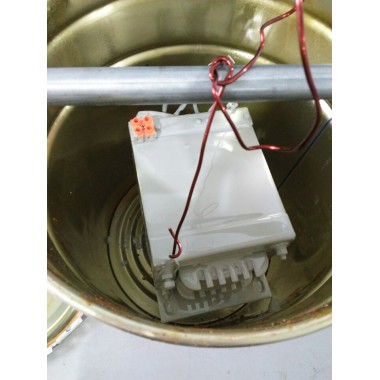

Its viscosity is suitable for applications such as brush, jet and immersion. If viscosity is reduced, it must be diluted with about 15%-20% diluent T-200.

Storage and stability

Store in a cool and dry place (the highest temperature is 30 degrees).

Avoid direct sunlight, avoid dampness, keep dry, ventilated and keep away from heat sources.

Quality guarantee period：

12 months (stored in a sealed original barrel, never opened).

Origin: China
