Product Description

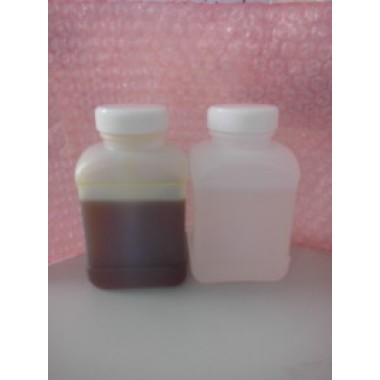

SYNTHITE AC-43 gas dry polyester insulating varnish

Product description

As a kind of high temperature resistance, improved room temperature drying varnish type multiple polyester.

Product features

1. UL insulation system authentication to CLASS F level. 2. fast drying.

3. the permeability is strong. 4. the strength is strong.

5. the connectivity is good. 6. fast processing flow.

7. excellent heat resistance, acid and alkaline. 8. excellent toughness and ductility.

Product use:

Electrical and electronic products or parts, various types of PCB coil, transformer, circuit board, resistor capacitor, generator etc.

Instructions

AC-43 can be applied to many processes including immersion, brushing and spray, which can be naturally dried in air.

It can also increase its oil resistance and chemical resistance through baking. The general management process needs 1 hours only 110 degrees in temperature due to under

It can be completed. If we want to shorten its baking time, it can bake for 10~15 minutes at 148 degrees and AC-43.

After baking in the product is covered with a layer of film to increase its strength and connectivity.

The recommended process for automated operation system is:

Please first preheat all baking equipment to the temperature required for the components.

1. preheat for 10 minutes at 100 degrees centigrade.

2. cool to 60.

3. products will be immersed in water for about 15 seconds to Fanli, the bubble disappeared.

4. products will drip dry for about 45 seconds.

5. baked in a oven and about 5 minutes at 148.

Based on existing process management, suggestions on the 15% scale blending use thinner, but still need to make appropriate adjustments according to the characteristics of the product

Water resistance: excellent

Acid resistance (10% sulfuric acid) excellent

Alkali resistance (1% sodium hydroxide) is excellent

Saltwater resistance: excellent

Oil resistance, ASTM D-115 pass

Storage:

Store in a cool and dry environment (recommended at 18 C ~24 C) and keep away from sunlight.

Save time: one year (preserved in 21 DEG C Wen)

Packaging and marking

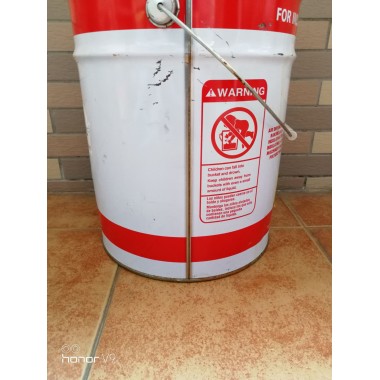

1, packing: 5 gallons / barrel 55 gallons / buckets

2, every barrel product is pasted with identification card before leaving the factory, marking the product name, batch and so on, so as to track the quality.
